Produktserie: Platta keramiska IR-element FFE
As one of the most popular infrared radiant emitters on the market, ceramic heater elements can be applied in a diverse range of industrial and engineering processes. With typical heat applications including thermoforming, packaging, and annealing as well as being used as heaters for paint curing, printing, and drying, these robust ceramic heaters provide long-wave infrared radiation that’s both effective and efficient.
Each ceramic infrared heater element operates up to 750°C (1382°F) producing infrared wavelengths in the 2 – 10 micron range. Standard voltage is 230V and standard wattages range between 60W and 1000W.
Our trough-style elements produce a concentrated output which disperses with distance, making it better suited to emitters positioned further from the target. Flat style elements produce a uniform output better suited to emitters positioned closer to the target material.
Full technical data is available on each product page, with further information available on our infrared heat applications page or in our white paper reports.
Our range of long-wave, infrared ceramic elements are CE marked with UL approval for full quality assurance and compliance.

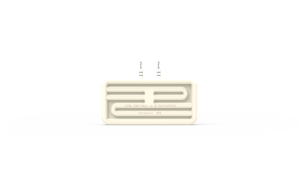

SES Platta keramiska IR-element HFE 500W. Dim: 122 x 60mm

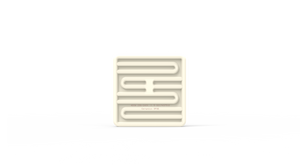

SES Platta keramiska IR-element SFSE 650W. Dim: 122 x 122mm
SES Platta keramiska IR-element SFSE 1000W. Dim: 122 x 122mm
SES Platta keramiska IR-element SFSE 500W. Dim: 122 x 122mm
SES Platta keramiska IR-element SFSE 400W. Dim: 122 x 122mm
SES Platta keramiska IR-element LFFE 750W. Dim: 245 x 95mm
SES Platta keramiska IR-element LFFE 150W. Dim: 245 x 95mm
SES Platta keramiska IR-element LFFE 1400W. Dim: 245 x 95mm
SES Platta keramiska IR-element HFE 400W. Dim: 122 x 60mm
SES Platta keramiska IR-element SFSE 250W. Dim: 122 x 122mm

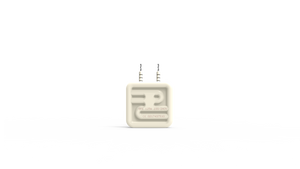

SES Platta keramiska IR-element QFE 250W. Dim: 60 x 60mm
SES Platta keramiska IR-element HFE 250W. Dim: 122 x 60mm
SES Platta keramiska IR-element QFE 125W. Dim: 60 x 60mm

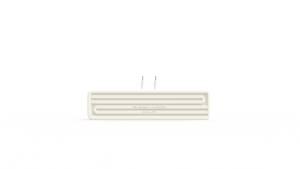

SES Platta keramiska IR-element FFE 750W. Dim: 245 x 60mm
SES Platta keramiska IR-element FFE 500W. Dim: 245 x 60mm
SES Platta keramiska IR-element HFE 325W. Dim: 122 x 60mm
SES Platta keramiska IR-element FFE 300W. Dim: 245 x 60mm
SES Platta keramiska IR-element FFE 250W. Dim: 245 x 60mm
SES Platta keramiska IR-element HFE 150W. Dim: 122 x 60mm
SES Platta keramiska IR-element FFE 1000W. Dim: 245 x 60mm
SES Platta keramiska IR-element HFE 125W. Dim: 122 x 60mm
SES Platta keramiska IR-element FFE 650W. Dim: 245 x 60mm
SES Platta keramiska IR-element FFE 400W. Dim: 245 x 60mm
